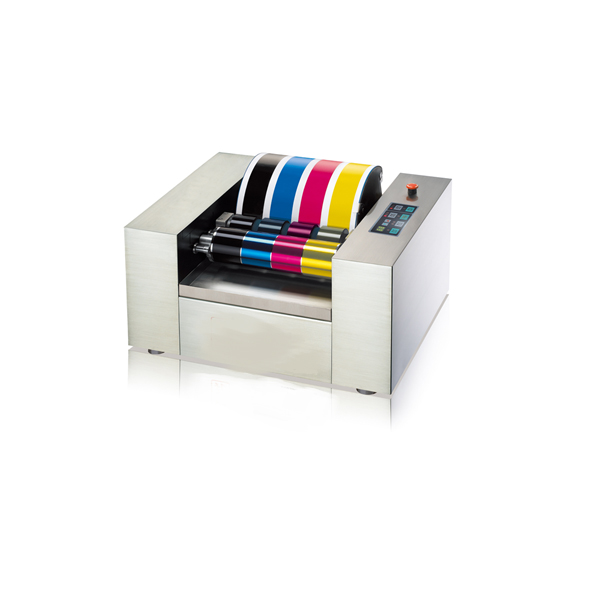

LM225A Offset Proof Machine
contact
Product details
LM225A Offset proof machine is apply to Offset ,letterpress inks, UV inks, UV inks, UV flexo printing inks single color test.(such as matching and testing.).
Operational Characteristic
1.Adopted by button press,easy operation.
2.PLC monitor apparatus part, contact switch, induction switch on-line Fault detection and troubleshooting is more convenient
3.Add electric color development pressure correction function: the instrument pressure corrects to Zero status more easier.
4.Ink uniform mode set according to any demands: 3 levels(time is adjustable from 15-99seconds,speed from 0-1000rpm.)
5.Cleaning safety and easy
6.High precision:.＜0.5
Technical parameters
1.Input/power：220V, 50/60Hz, 250W
2.Ink supply： by ink-joiner
3.Substrate size: 270x250mm
4.Distributing ink pressure: adjustable by manual
5.Printing pressure:-1~+1mm手动调节 manual adjust
6.Printing speed adjustable：0-30rpm
7.Distributing ink speed：0-1000rpm
8.Rubber roller size：DN67X229mm(offset ink roller or UV ink roller optional)
9.Size(LxWxH): 525x430x280mm
10.N.W：75KG
